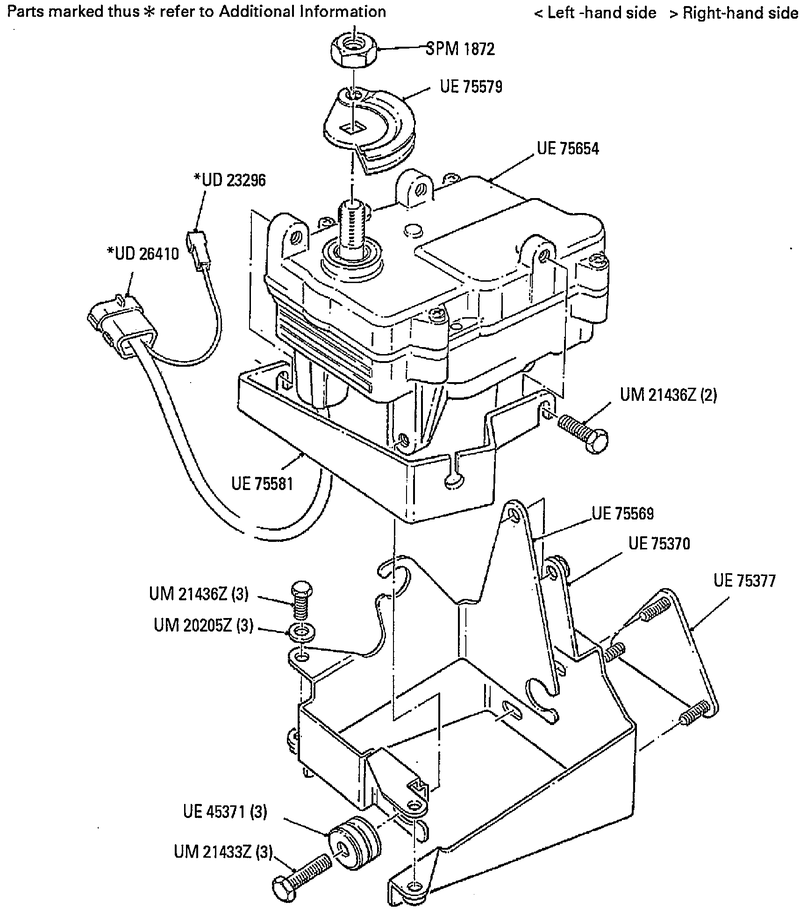

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| 3 | UE75581 | ABUTMENT BRACKET SPEED CONTROL ACTUATOR | |
| 9 | UE75579 | ASSY QUADRANT CABLE GUIDE SPEED CONTROL ACTUATOR | |
| 14 | UE75377 | ASSY STUD PLATE SPEED CONTROL ACTUATOR MOUNTING | |
| 13 | UE75370 | ASSY SUPPORT BRACKET SPEED CONTROL ACTUATOR | |
| 12 | UE75569 | CARRIER BRACKET SPEED CONTROL ACTUATOR | |
| 2 | UD26411 | KEEPER BAR 7 WAY TTS | |
| 8 | SPM1872 | NUT M8 X 1.0 | |
| 2 | UD26410 | PLUG 7 WAY 3MM TTS | |
| 6 | UE45371 | RESILIENT MOUNT | |
| 7 | UM21433Z | SETSCREW M6 X 10MM LONG | |
| 4 | UM21436Z | SETSCREW M6 X 16MM LONG | |
| 11 | UM21436Z | SETSCREW M6 X 16MM LONG | |
| 1 | UD23296 | SOCKET 1 WAY | |
| 10 | UE75654 | SPEED CONTROL ACTUATOR | |
| 2 | UD25724 | TERMINAL 3MM TTS | |
| 2 | UD26412 | TERMINAL 3MM TTS | |
| 1 | UD23295 | TERMINAL POSILOCK MALE | |
| 5 | UM20205Z | WASHER PLAIN M6 | |
