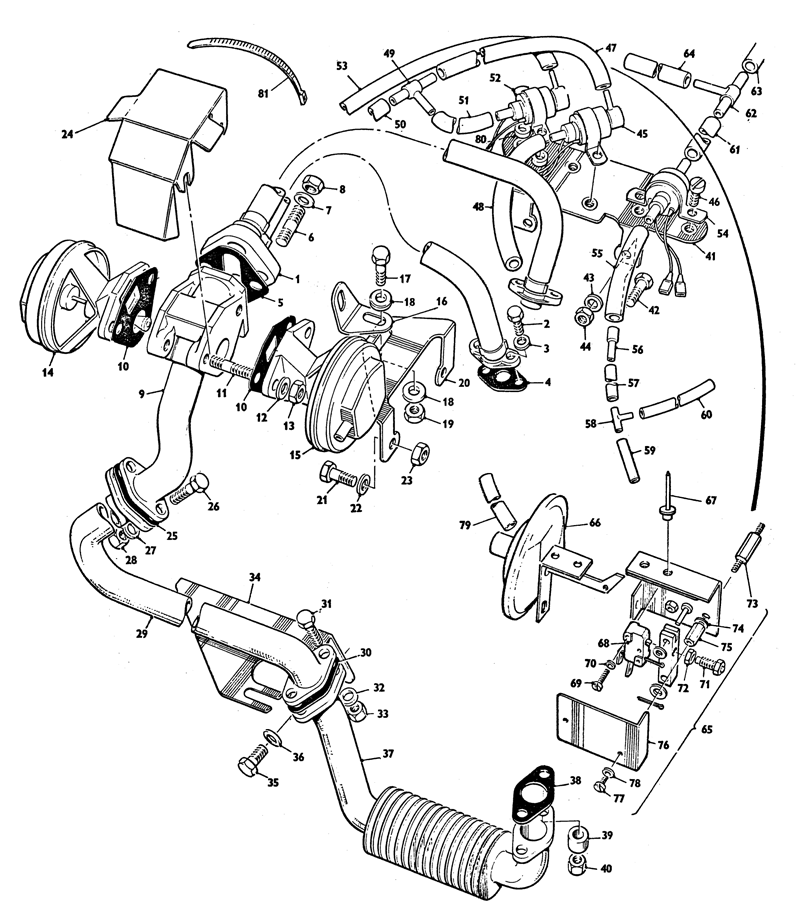

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| 56 | SPC1498 | ADAPTOR | |
| 71 | UE38784 | ASSY ADJUSTMENT SCREW MICROSWITCH VACUUM MOTOR | |
| 37 | UE38208 | ASSY EXHAUST GAS RECIRCULATION COOLER & PIPES | |
| 9 | UE38745 | ASSY MOUNTING BLOCK EXHAUST GAS RECIRCULATION VALVES | |
| 41 | UE38728 | ASSY MOUNTING BRACKET SOLENOID VALVES | |
| 1 | UE38747 | ASSY PIPES EXHAUST GAS RECIRCULATION VALVE TO CARBURETTER T PIECE | |
| 58 | UE38631 | ASSY TEE PIECE | |
| 65 | UE39792 | ASSY VACUUM OPERATED SWITCH | |
| 35 | UA102Z | BOLT .250 UNF X .500 IN. LONG | |
| 17 | UA103Z | BOLT .250 UNF X .625 IN. LONG | |
| 21 | UA155Z | BOLT .3125 UNF X 1.000 IN. LONG | |
| 42 | UA155Z | BOLT .3125 UNF X 1.000 IN. LONG | |
| 18 | UA205Z | BOLT .375 UNF X .875 IN. LONG | |
| 31 | UA106R | BOLT.250 UNF X 1.000 IN. LONG | |
| 26 | UA106R | BOLT.250 UNF X 1.000 IN. LONG | |
| 81 | UE35610 | CABLE TIE 120MM LONG | |
| 76 | UE38740 | COVER VACUUM OPERATED SWITCH | |
| 80 | SPC1422 | DISTANCE PIECE VACUUM SOLENOID MOUNTING | |
| 38 | UE38063 | GASKET EXHAUST GAS RECIRCULATION FEED PIPE | |
| 30 | UE38063 | GASKET EXHAUST GAS RECIRCULATION FEED PIPE | |
| 25 | UE38063 | GASKET EXHAUST GAS RECIRCULATION FEED PIPE | |
| 4 | UE38329 | GASKET EXHAUST GAS RECIRCULATION PIPE TO T PIECE | |
| 5 | UE38730 | GASKET EXHAUST GAS RECIRCULATION PIPES TO MOUNTING BLOCK | |
| 10 | UE38064 | GASKET EXHAUST GAS RECIRCULATION VALVE TO MOUNTING BLOCK | |
| 24 | UE38720 | HEATSHIELD EXHAUST GAS RECIRCULATION VALVES | |
| 79 | SPC1586 | HOSE .148 IN. I.D. X 36.000 IN. LONG | |
| 64 | UE37668 | HOSE .210 IN. I.D. (14.000 IN.) | |
| 55 | UE37669 | HOSE .210 IN. I.D. (3.500 IN.) | |
| 63 | UE37669 | HOSE .210 IN. I.D. (3.500 IN.) | |
| 48 | SPC1229 | HOSE CANISTER TO VALVE | |
| 61 | SPC1229 | HOSE CANISTER TO VALVE | |
| 47 | SPC1429 | HOSE EGR SOLENOID VALVE TO T PIECE | |
| 50 | SPC1428 | HOSE T PIECE TO EGR VALVE | |
| 59 | SPC1502 | HOSE VACUUM 3.000 IN. LONG | |
| 72 | UE36072 | LOCKNUT .250 UNF | |
| 68 | UD14562 | MICROSWITCH | |
| 16 | UE38723 | MOUNTING BRACKET EXHAUST GAS RECIRCULATION VALVES | |
| 51 | SPC1430 | NO DESCRIPTION | |
| 13 | RE24548 | NUT | |
| 28 | SPC1333 | NUT EGR PIPE TO MANIFOLD | |
| 8 | SPC1333 | NUT EGR PIPE TO MANIFOLD | |
| 40 | SPC1333 | NUT EGR PIPE TO MANIFOLD | |
| 33 | SPC1333 | NUT EGR PIPE TO MANIFOLD | |
| 19 | UA301Z | NUT PLAIN .250 UNF | |
| 23 | UA352Z | NUT PLAIN LOCK .3125 UNF | |
| 44 | UA352Z | NUT PLAIN LOCK .3125 UNF | |
| 29 | UE38206 | PIPE EXHAUST GAS RECIRCULATION COOLER TO VALVE | |
| 75 | SPC1426 | REACH NUT 2BA | |
| 67 | XB13806R | RIVET POP DOMED HEAD .156 IN. X .266 IN. LONG | |
| 77 | X1901Z | SCREW CHEESE HEAD 2BA X .250 IN. LONG | |
| 46 | X1907Z | SCREW CHEESE HEAD 2BA X .375 IN. LONG | |
| 69 | UA10696Z | SCREW CHEESE HEAD 6BA X .625 IN. LONG | |
| 2 | XC197Z | SETSCREW 2BA X .750 IN. LONG | |
| 52 | UE38151 | SOLENOID VALVE | |
| 45 | UE38151 | SOLENOID VALVE | |
| 54 | UE38871 | SOLENOID VALVE ANTI DIESEL | |
| 39 | SPC1332 | SPACER EXHAUST GAS RECIRCULATION PIPE STUDS | |
| 34 | UE38291 | STEADY BRACKET EXHAUST GAS RECIRCULATION FEED PIPE | |
| 11 | UA754R | STUD .3125 UNF X 1.375 IN. LONG | |
| 6 | UA703R | STUD. 250 UNF X 1.125 IN. LONG | |
| 20 | UE38727 | SUPPORT BRACKET EXHAUST GAS RECIRCULATION VALVES | |
| 73 | UE38739 | SUPPORT PILLAR VACUUM OPERATED SWITCH | |
| 43 | SPC1424 | T PIECE VACUUM HOSES | |
| 62 | SPC1424 | T PIECE VACUUM HOSES | |
| 57 | SPC1501 | VACUUM HOSE .099 IN. I.D. X 2.000 IN. LONG | |
| 60 | UE37381 | VACUUM HOSE .148 IN. I.D. X 17.000 IN. LONG | |
| 53 | SPC1427 | VACUUM HOSE .211 IN. I.D. X 32.000 IN. LONG | |
| 66 | UE38759 | VACUUM MOTOR VACUUM OPERATED SWITCH | |
| 14 | UE38081 | VALVE EXHAUST GAS RECIRCULATION | |
| 15 | UE38734 | VALVE EXHAUST GAS RECIRCULATION | |
| 27 | UA1251R | WASHER PLAIN .265 IN. I.D. | |
| 7 | UA1251R | WASHER PLAIN .265 IN. I.D. | |
| 32 | UA1251R | WASHER PLAIN .265 IN. I.D. | |
| 43 | UA1252Z | WASHER PLAIN .328 IN. I.D. | |
| 22 | UA1252Z | WASHER PLAIN .328 IN. I.D. | |
| 3 | X4404Z | WASHER PLAIN 2BA | |
| 74 | X4404Z | WASHER PLAIN 2BA | |
| 78 | X4404Z | WASHER PLAIN 2BA | |
| 70 | X4401Z | WASHER PLAIN 5BA | |
| 36 | UA2052Z | WASHER PLAIN HEAVY .265 IN. I.D. | |
| 12 | UA6103R | WASHER THICK .3175 IN. I.D. | |
