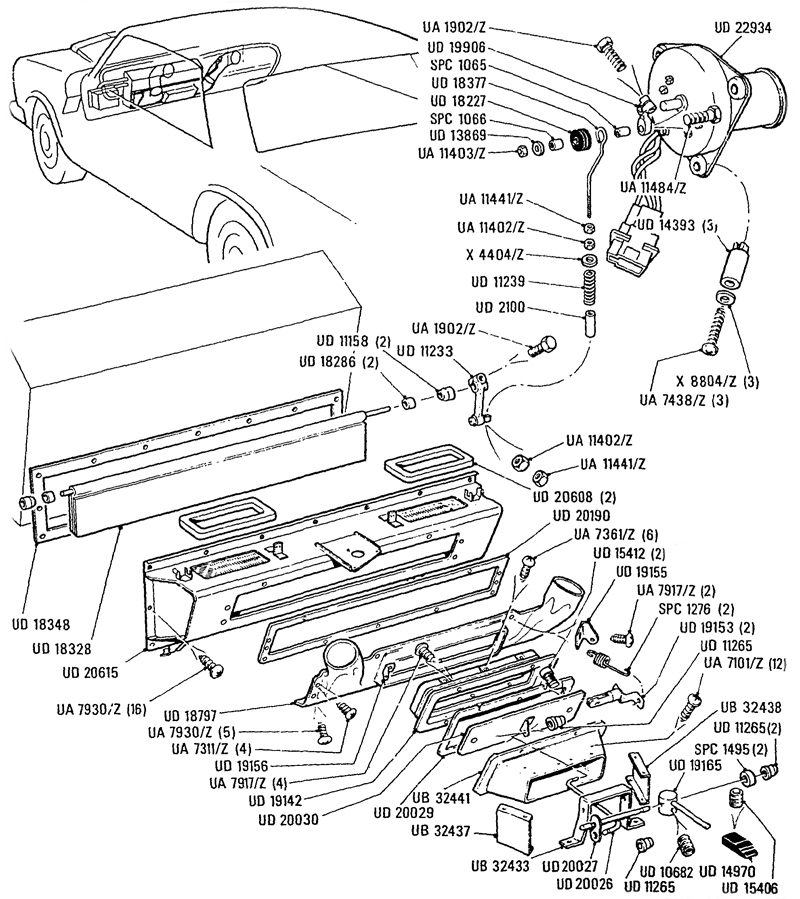

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| UD22934 | ACTUATOR LOWER QUANTITY FLAP HVAC | ||
| UD11233 | ASSY CRANK MODE FLAP HVAC | ||
| UD20615 | ASSY DISTRIBUTION BOX AIR CONDITIONING | ||
| UD20030 | ASSY FLAP FACIA CENTRE OUTLET | ||
| UD19142 | ASSY HOUSING FLAP FACIA CENTRE OUTLET | ||
| UD19153 | ASSY LEVER & PIVOT FLAP FACIA CENTRE OUTLET | ||
| UD18328 | ASSY MODE FLAP | ||
| UD20027 | ASSY PIVOT SHAFT FACIA CENTRE OUTLET | ||
| UB32433 | BRACKET PIVOT SHAFT CENTRE FACIA DUCT | ||
| UD19155 | BRACKET SPRING ANCHORAGE FLAP FACIA CENTRE OUTLET LH | ||
| UD19156 | BRACKET SPRING ANCHORAGE FLAP FACIA CENTRE OUTLET RH | ||
| UD11265 | BUSH FASTEX | ||
| UD11265 | BUSH FASTEX | ||
| UD11265 | BUSH FASTEX | ||
| UD15412 | CAP SCREW 5BA X .250 IN. LONG | ||
| UD19906 | CRANK ACTUATOR CENTRE OUTLET FLAP | ||
| SPC1065 | DISTANCE PIECE | ||
| SPC1066 | DISTANCE PIECE | ||
| UD18286 | DISTANCE PIECE | ||
| UD18797 | DUCT DISTRIBUTION BOX TO FACIA VENTS | ||
| UB32441 | DUCT FACIA CENTRE OUTLET | ||
| UD18227 | GROMMET | ||
| UD10682 | GRUBSCREW 5BA X .250 IN. LONG | ||
| UD15406 | HOLLOW GRUBSCREW 6BA | ||
| UD2100 | INSULATING SLEEVE 3MM I.D. X 20MM LONG | ||
| UD14970 | KNOB FACIA CENTRE VENT | ||
| UD18377 | LINK ROD ACTUATOR TO MODE FLAP | ||
| UD20026 | LINK ROD FLAP FACIA CENTRE OUTLET | ||
| UD14393 | NUT FASTEX | ||
| UA11403Z | NUT PLAIN 4BA | ||
| UA11402Z | NUT PLAIN 5BA | ||
| UA11402Z | NUT PLAIN 5BA | ||
| UA11441Z | NUT PLAIN LOCK 5BA | ||
| UA11441Z | NUT PLAIN LOCK 5BA | ||
| UD19165 | OPERATING LEVER CENTRE OUTLET FLAP | ||
| UB32437 | PLATE CENTRE FACIA DUCT LH | ||
| UB32438 | PLATE CENTRE FACIA DUCT RH | ||
| UA7101Z | SCREW FLANGE HEAD NO.4 X .250 IN. LONG | ||
| UA7438Z | SCREW MUSHROOM HEAD NO.10 X 1.500 IN. LONG | ||
| UA7930Z | SCREW PAN HEAD NO.10 X .375 IN. LONG | ||
| UA7930Z | SCREW PAN HEAD NO.10 X .375 IN. LONG | ||
| UA7311Z | SCREW PAN HEAD NO.6 X .250 IN. LONG | ||
| UA7917Z | SCREW PAN HEAD NO.6 X .3125 IN. LONG | ||
| UA7917Z | SCREW PAN HEAD NO.6 X .3125 IN. LONG | ||
| UA7361Z | SCREW PAN HEAD NO.6 X .375 IN. LONG | ||
| UD20608 | SEAL DEMISTER DUCT TO DISTRIBUTION BOX | ||
| UD18348 | SEAL DISTRIBUTION BOX TO HEATER BOX | ||
| UD20190 | SEAL FACIA DUCT TO DISTRIBUTION BOX | ||
| UD20029 | SEAL FLAP FACIA CENTRE OUTLET | ||
| UA1902Z | SETSCREW 3BA X 500 IN. LONG | ||
| UA1902Z | SETSCREW 3BA X 500 IN. LONG | ||
| UA11484Z | SETSCREW 4BA X 1.000 IN. LONG | ||
| UD11239 | SPRING LINK ROD | ||
| SPC1276 | SPRING PUSHROD FUSE COMPARTMENT | ||
| UD13869 | WASHER | ||
| SPC1495 | WASHER NEOPRENE | ||
| X4404Z | WASHER PLAIN 2BA | ||
| X8804Z | WASHER PLAIN 2BA | ||
