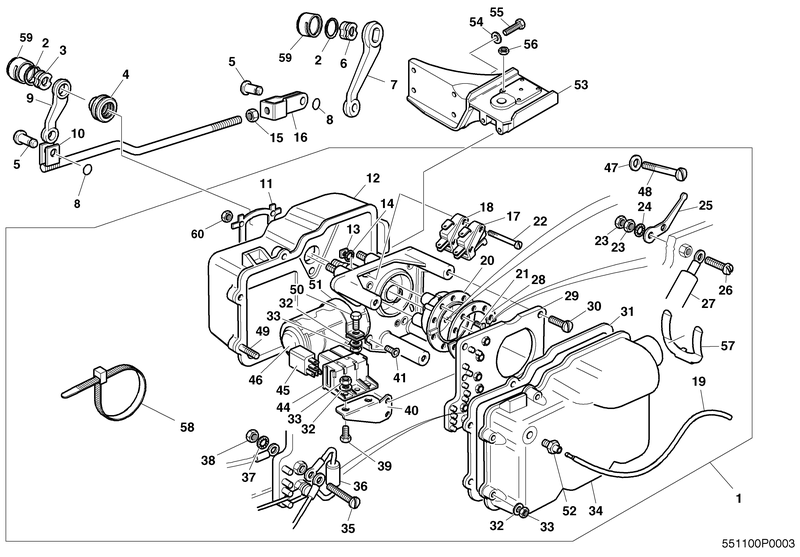

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| 1 | PL55299PA | ACTUATOR GEARBOX | |
| 52 | PL32077PA | ADAPTER TRANSMISSION ACTUATOR BREATHER | |
| 16 | PL24608PA | ASSY JAW OPERATING ROD | |
| 46 | UD73703 | ASSY MOTOR & GEARBOX GEAR SELECTOR ACTUATOR | |
| 51 | UD74392 | ASSY RETAINING STRAP MOTOR GEAR SELECTOR ACTUATOR | |
| 18 | UG12676 | ASSY ROLLER MICROSWITCH | |
| 44 | UD71215 | BASE MICRO RELAY | |
| 29 | UD74440 | BASE SPRING CONTACTS GEAR SELECTOR ACTUATOR | |
| 40 | UD73272 | BRACKET MICRO RELAY GEAR CHANGE ACTUATOR | |
| 53 | PE56349PB | BRACKET MOUNTING GEARBOX ACTUATOR | |
| 58 | UD70310 | CABLE TIE | |
| 36 | UG13342 | CAPACITOR TRANSMISSION ACTUATOR | |
| 20 | UD74847 | CARRIER CAM & SLIP RING GEAR SELECTOR ACTUATOR | |
| 12 | PL24186PC | CASE GEARBOX ACTUATOR | |
| 2 | UD74221 | CIRCLIP | |
| 57 | PL30476PA | CLIP LOCK GEARBOX ACTUATOR | |
| 10 | PL55298PB | CONTROL ROD ACTUATOR TO TRANSMISSION | |
| 34 | PL21751PC | COVER GEARBOX ACTUATOR | |
| 19 | PL32076PA | HOSE BREATHER TRANSMISSION ACTUATOR | |
| 31 | PL24330PC | JOINT COVER GEARBOX ACTUATOR | |
| 7 | UD73560 | LEVER GEAR SELECTOR ACTUATOR | |
| 45 | UD75823 | MICRO RELAY | |
| 17 | UV11489PA | MICROSWITCH | |
| 3 | UD73695 | NUT M8 TAMPERPROOF | |
| 56 | PC25597PA | NUT M8 WHIZZ TYPE | |
| 15 | UA301Z | NUT PLAIN .250 UNF | |
| 13 | UA11401Z | NUT PLAIN 6BA | |
| 38 | UM20975Z | NUT PLAIN M4 | |
| 33 | UM20976Z | NUT PLAIN M5 | |
| 60 | UM21557Z | NUT PLAIN M6 | |
| 60 | UM21557Z | NUT PLAIN M6 | |
| 23 | UV11315PA | NYLOC NUT M3 | |
| 9 | UD72227 | OUTPUT LEVER GEAR SELECTOR ACTUATOR | |
| 5 | SPC3535 | PIN GROOVED | |
| 59 | UD73696 | PROTECTIVE COVER LEVER PIVOT GEAR SELECTOR ACTUATOR | |
| 8 | SPC3536 | RING RETAINING PIN | |
| 26 | X1710Z | SCREW CHEESE HEAD 5BA X .500 IN. LONG | |
| 22 | UA10702Z | SCREW CHEESE HEAD 6BA X 1.250 IN. LONG | |
| 39 | UM20873Z | SCREW CHEESE HEAD M5 X 10MM LONG | |
| 21 | UA8102Z | SCREW CSK HEAD NO.4 X .3125 IN. LONG | |
| 41 | SPM2161 | SCREW M4 CHEESE HEAD | |
| 48 | UM20798Z | SCREW PAN HEAD M4 X 25MM LONG | |
| 30 | UA7334Z | SCREW PAN HEAD NO.8 X .750 IN. LONG | |
| 4 | UD72226 | SEAL OUTPUT SPINDLE GEAR SELECTOR ACTUATOR | |
| 28 | UG11289 | SEGMENT SLIP RING TRANSMISSION ACTUATOR | |
| 50 | UM20704Z | SETSCREW M5 X 12MM LONG | |
| 55 | UM21466Z | SETSCREW M8 X 20MM LONG | |
| 35 | WHT003625 | SETSCREW-M4 X 16 LONG-HEX HD | |
| 27 | UD73927 | SLEEVE CAPACITOR LEAD GEAR CHANGE ACTUATOR | |
| 25 | UG11315 | SPRING CONTACT TRANSMISSION ACTUATOR | |
| 49 | SPM2232 | STUD M5 | |
| 11 | UD73698 | TAB WASHER GEAR SELECTOR ACTUATOR | |
| 6 | PL27111PA | TAMPERPROOF NUT M8 | |
| 47 | UM20221Z | WASHER PLAIN M4 | |
| 32 | UM20204Z | WASHER PLAIN M5 | |
| 54 | UM20206Z | WASHER PLAIN M8 | |
| 54 | UM20206Z | WASHER PLAIN M8 | |
| 37 | UD5033 | WASHER SHAKEPROOF 3BA | |
| 24 | UD10080 | WASHER SHAKEPROOF 5BA | |
| 14 | UG10742 | WASHER SHAKEPROOF 6BA | |
