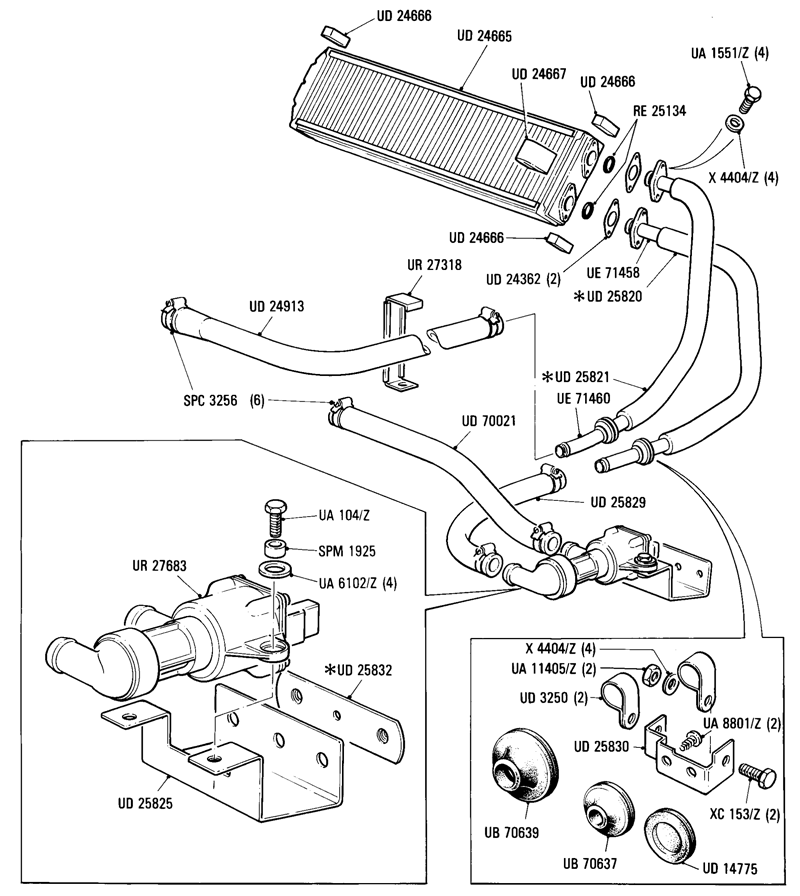

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| UR27318 | ASSY BRACKET HEATER HOSE | ||
| UD25825 | ASSY MOUNTING BRACKET WATER TAP | ||
| UD25832 | ASSY MOUNTING PLATE WATER TAP | ||
| UE71458 | ASSY PIPE HEATER FEED | ||
| UE71460 | ASSY PIPE HEATER RETURN | ||
| UA104Z | BOLT .250 UNF X .750 IN. LONG | ||
| XC153Z | BOLT 2BA X .500 IN. LONG | ||
| UD25830 | BRACKET HEATER PIPES | ||
| UA8801Z | DRILLSCREW DURADYNE NO.6 X .375 IN. LONG | ||
| UD24362 | GASKET HEATER MATRIX | ||
| UB70639 | GROMMET | ||
| UB70637 | GROMMET | ||
| UD14775 | GROMMET | ||
| UD24665 | HEATER MATRIX | ||
| SPC3256 | HOSE CLIP 20/32MM | ||
| UD70021 | HOSE HEATER FEED ENGINE TO WATER TAP | ||
| UD25829 | HOSE HEATER FEED WATER TAP TO MATRIX | ||
| UD24913 | HOSE HEATER RETURN | ||
| UD25821 | INSULATION TUBE HEATER MATRIX PIPE | ||
| UD25820 | INSULATION TUBE HEATER MATRIX PIPE | ||
| UA11405Z | NUT PLAIN 2BA | ||
| RE25134 | O RING ADAPTOR | ||
| UD3250 | P CLIP .625 IN. | ||
| UD24666 | SEAL HEATER MATRIX TO HEATER BOX | ||
| UD24666 | SEAL HEATER MATRIX TO HEATER BOX | ||
| UD24666 | SEAL HEATER MATRIX TO HEATER BOX | ||
| UD24667 | SEAL HEATER MATRIX TO HEATER BOX | ||
| UA1551Z | SETSCREW 2BA X 625 IN. LONG | ||
| SPM1925 | SLEEVE | ||
| UA1205Z | STUD .3125 UNF X 1.000 IN. LONG | ||
| X4404Z | WASHER PLAIN 2BA | ||
| X4404Z | WASHER PLAIN 2BA | ||
| UA6102Z | WASHER THICK .255 IN. I.D. | ||
| UR27683 | WATER TAP | ||
