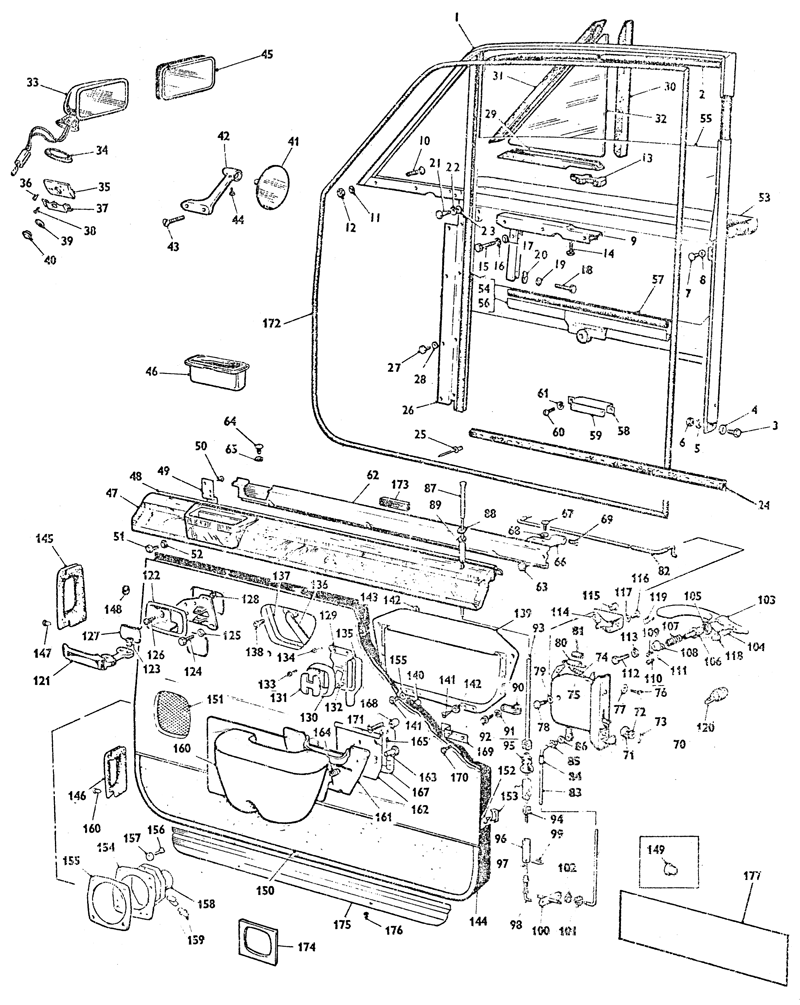

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| 45 | CD5891 | ADHESIVE PAD GLASS DOOR MIRROR | |
| 20 | UB12218 | ADJUSTING WASHER FRONT SUPPORT CHANNEL DOOR | |
| 74 | UB16263 | ANCHORAGE SPRING | |
| 160 | UW14717 | ASSY ARMREST FRONT DOOR | |
| 46 | UB33055 | ASSY ASHTRAY | |
| 161 | UB17567 | ASSY BASEPLATE FRONT DOOR ARMREST | |
| 114 | UB33691 | ASSY BRACKET & LEVER PUSH BUTTON TO DOOR LATCH FRONT LH | |
| 114 | UB33692 | ASSY BRACKET & LEVER PUSH BUTTON TO DOOR LATCH FRONT RH | |
| 56 | UB18115 | ASSY CHANNEL DOOR DROP GLASS | |
| 93 | UB19145 | ASSY CONTROL ROD DOOR LATCH | |
| 82 | UB15255 | ASSY CONTROL ROD FRONT DOOR LATCH LH | |
| 82 | UB15254 | ASSY CONTROL ROD FRONT DOOR LATCH RH | |
| 94 | UB19146 | ASSY CONTROL ROD SOLENOID TO SPRING LINK DOOR LOCKING | |
| 1 | UB15776 | ASSY DOOR FRAME FRONT RH | |
| 70 | UB32471 | ASSY DOOR LATCH LH | |
| 70 | UB32472 | ASSY DOOR LATCH RH | |
| 33 | UB34501 | ASSY DOOR MIRROR LH (CONVEX GLASS) | |
| 33 | UB33281 | ASSY DOOR MIRROR LH (FLAT GLASS) | |
| 33 | UB34500 | ASSY DOOR MIRROR RH (CONVEX GLASS) | |
| 33 | UB33280 | ASSY DOOR MIRROR RH (FLAT GLASS) | |
| 54 | UB18232 | ASSY DROP GLASS & CHANNEL FRONT DOOR LH PLAIN | |
| 54 | UB18233 | ASSY DROP GLASS & CHANNEL FRONT DOOR LH SUNDYM | |
| 54 | UB18231 | ASSY DROP GLASS & CHANNEL FRONT DOOR RH PLAIN | |
| 54 | UB18234 | ASSY DROP GLASS & CHANNEL FRONT DOOR RH SUNDYM | |
| 1 | UB19073 | ASSY FRAME FRONT DOOR LH | |
| 1 | UB19072 | ASSY FRAME FRONT DOOR RH | |
| 136 | UB15593 | ASSY GRAB HANDLE DOOR | |
| 121 | UB15379 | ASSY HANDLE & BASE DOOR INTERIOR RELEASE LH | |
| 121 | UB15380 | ASSY HANDLE & BASE DOOR INTERIOR RELEASE RH | |
| 103 | UB33587 | ASSY HANDLE DOOR EXTERIOR RELEASE LH | |
| 103 | UB33586 | ASSY HANDLE DOOR EXTERIOR RELEASE RH | |
| 96 | UB17971 | ASSY HOUSING SPRING LINK DOOR LOCKING | |
| 70 | RH2567 | ASSY LATCH DOOR LH | |
| 70 | RH2566 | ASSY LATCH DOOR RH | |
| 100 | UB18331 | ASSY LEVER SILL CONTROL FRONT DOOR LATCH | |
| 129 | UD17153 | ASSY MOUNTING BRACKET DOOR LOCKING SWITCH LH | |
| 129 | UD17154 | ASSY MOUNTING BRACKET DOOR LOCKING SWITCH RH | |
| 98 | UB18841 | ASSY PISTON SPRING LINK DOOR LOCKING | |
| 87 | UB18063 | ASSY SILL BUTTON & CONTROL ROD DOOR LATCH | |
| 162 | UB31115 | ASSY SLIDE & BARS FRONT DOOR ARMREST | |
| 139 | UB17909 | ASSY STOWAGE POCKER FRONT DOOR LH | |
| 139 | UB17870 | ASSY STOWAGE POCKER FRONT DOOR RH | |
| 9 | UB18855 | ASSY SUPPORT PLATE FRONT DOOR LH | |
| 9 | UB18854 | ASSY SUPPORT PLATE FRONT DOOR RH | |
| 150 | UW15217 | ASSY TRIM PAD FRONT DOOR LH | |
| 150 | UW15215 | ASSY TRIM PAD FRONT DOOR LH | |
| 150 | UW15216 | ASSY TRIM PAD FRONT DOOR RH | |
| 150 | UW15214 | ASSY TRIM PAD FRONT DOOR RH | |
| 47 | UW12711 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR LH | |
| 47 | UW12711 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR LH | |
| 47 | UW15635 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR LH | |
| 47 | UW14894 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR RH | |
| 47 | UW12712 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR RH | |
| 47 | UW12712 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR RH | |
| 47 | UW13279 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR RH | |
| 47 | UW15640 | ASSY WAISTRAIL FINISHER & SEALS FRONT DOOR RH | |
| 62 | UB33735 | ASSY WAISTRAIL STIFFENER FRONT DOOR LH | |
| 62 | UB33734 | ASSY WAISTRAIL STIFFENER FRONT DOOR RH | |
| 78 | UB13915 | BOLT | |
| 3 | UA103Z | BOLT .250 UNF X .625 IN. LONG | |
| 7 | UA103Z | BOLT .250 UNF X .625 IN. LONG | |
| 21 | UA108Z | BOLT .250 UNF X 1.250 IN. LONG | |
| 15 | UA108Z | BOLT .250 UNF X 1.250 IN. LONG | |
| 112 | SPM1237 | BOLT M4 X 25MM LONG | |
| 49 | UB12233 | BRACKET WAISTRAIL FINISHER DOOR | |
| 123 | UB15647 | BUSH | |
| 85 | UB12700 | BUSH FASTEX | |
| 101 | UB12700 | BUSH FASTEX | |
| 89 | UB12856 | BUSH SILL CONTROL BUTTON | |
| 43 | UA7527Z | CAPSCREW SOCKET HEAD .250 UNF X 1.000 IN. LONG | |
| 119 | UB10373 | CAPSCREW SOCKET HEAD 2BA X .562 IN. LONG | |
| 26 | UB12509 | CLOSING PLATE FRONT CHANNEL DOOR DROP GLASS | |
| 66 | UB13639 | CONNECTING PIECE DOOR WAIST STIFFENER TO REAR FRAME | |
| 58 | UB13626 | CONSTRAINT WINDOW LIFT CHANNEL TO DOOR | |
| 73 | UB19370 | COTTER PIN DOOR LATCH | |
| 131 | UD18382 | COVER PLATE ESCUTCHEON DOOR LOCKING SWITCH | |
| 127 | UB32821 | COVER PLATE INTERIOR DOOR HANDLE ESCUTCHEON | |
| 81 | UB13932 | COVER TENSION SPRING DOOR LATCH | |
| 77 | UB14724 | CUP WASHER | |
| 168 | UB18397 | DISTANCE PIECE FRONT DOOR ARMREST | |
| 23 | UB12726 | DISTANCE WASHER | |
| 118 | RD8229 | DOME NUT | |
| 60 | UA8801Z | DRILLSCREW DURADYNE NO.6 X .375 IN. LONG | |
| 92 | UA8812Z | DRILLSCREW DURADYNE NO.8 X .500 IN. LONG | |
| 141 | UA8816Z | DRILLSCREW DURADYNE NO.8 X 1.000 IN. LONG | |
| 55 | UB12312 | DROP GLASS FRONT DOOR PLAIN | |
| 55 | UB13996 | DROP GLASS FRONT DOOR SUNDYM | |
| 95 | UB19076 | DUST SEAL DOOR LOCKING SOLENOID | |
| 122 | UB15229 | ESCUTCHEON DOOR INTERIOR RELEASE HANDLE LH | |
| 122 | UB15230 | ESCUTCHEON DOOR INTERIOR RELEASE HANDLE RH | |
| 130 | UD16843 | ESCUTCHEON DOOR LOCKING SWITCH | |
| 147 | UB16836 | FASTENER | |
| 88 | UB13665 | FASTENER BUSH SILL CONTROL ROD | |
| 137 | UW11640 | FOAM PACKING GRAB HANDLE DEPRESSION DOOR | |
| 34 | UB33286 | GASKET DOOR MIRROR TO DOOR | |
| 45 | CD5960 | GLASS DOOR MIRROR (CONVEX) | |
| 45 | CD5959 | GLASS DOOR MIRROR (FLAT) | |
| 32 | UB15758 | GLASS FRONT QUARTER LIGHT CLEAR | |
| 32 | UB15060 | GLASS FRONT QUARTER LIGHT SUNDYM | |
| 57 | UB18259 | GLAZING STRIP DOOR DROP GLASS CHANNEL | |
| 148 | UB12232 | GROMMET | |
| 137 | UW11639 | HIDE PANEL GRAB HANDLE DEPRESSION DOOR | |
| 167 | UB19912 | HOUSING SLIDE DOOR ARMREST | |
| 84 | UD2100 | INSULATING SLEEVE 3MM I.D. X 20MM LONG | |
| 175 | UB32421 | KICK PLATE FRONT DOOR TRIM | |
| 41 | UB14151 | MIRROR HEAD DOOR MIRROR CONVEX GLASS | |
| 41 | UB14150 | MIRROR HEAD DOOR MIRROR FLAT GLASS | |
| 154 | UW15280 | MOUNTING BOARD SPEAKER | |
| 169 | UB15472 | MOUNTING BRACKET ARMREST FRONT DOOR | |
| 37 | UB33276 | MOUNTING BRACKET REMOTE CONTROL DOOR MIRROR | |
| 144 | UB14521 | NO DESCRIPTION | |
| 144 | UB14520 | NO DESCRIPTION | |
| 6 | UA301Z | NUT PLAIN .250 UNF | |
| 12 | UA11405Z | NUT PLAIN 2BA | |
| 113 | UM20975 | NUT PLAIN M4 | |
| 90 | RE19626 | P CLIP | |
| 59 | UB13630 | PACKING PIECE WINDOW LIFT CHANNEL | |
| 25 | UB16097 | POP RIVET .156 IN. X .500 IN. LONG | |
| 120 | UB31850 | PRIVATE LOCK DOOR | |
| 135 | UD17140 | PROTECTIVE COVER DOOR LOCKING SWITCH | |
| 106 | UB33582 | PUSH BUTTON DOOR EXTERIOR RELEASE | |
| 99 | UB17983 | RETAINER PISTON SPRING LINK DOOR LOCKING | |
| 153 | UB2302 | RETAINER TRIM CLIP | |
| 39 | UB33254 | RETAINING NUT DOOR MIRROR REMOTE CONTROL | |
| 165 | UB19451 | ROLL PIN .101 IN. X .343 IN. LONG | |
| 94 | UB17994 | ROLL PIN .103 IN. X .375 IN. LONG | |
| 71 | UB19608 | ROLLER DOOR LATCH | |
| 149 | UB18905 | RUBBER BUFFER COURTESY LIGHT SWITCH (.050 IN.) | |
| 149 | UB18906 | RUBBER BUFFER COURTESY LIGHT SWITCH (.125 IN.) | |
| 149 | UB18907 | RUBBER BUFFER COURTESY LIGHT SWITCH (.200 IN.) | |
| 40 | SPC1988 | RUBBER BUSH DOOR MIRROR REMOTE CONTROL | |
| 170 | CS30541Z | SCREW BINDING HEAD 2BA X .375 IN. LONG | |
| 64 | CS30541Z | SCREW BINDING HEAD 2BA X .375 IN. LONG | |
| 67 | CS30541Z | SCREW BINDING HEAD 2BA X .375 IN. LONG | |
| 156 | CS31722Z | SCREW BINDING HEAD NO.10 X .375 IN. LONG | |
| 126 | UD11794 | SCREW CHEESE HEAD 4BA X .3125 IN. LONG | |
| 133 | UD11794 | SCREW CHEESE HEAD 4BA X .3125 IN. LONG | |
| 76 | UA3802SS | SCREW CSK HEAD .250 UNF X .625 IN. LONG | |
| 69 | CS30562Z | SCREW CSK HEAD 2BA X .500 IN. LONG | |
| 10 | CS30566SS | SCREW CSK HEAD 2BA X 1.000 IN. LONG | |
| 176 | UA9303Z | SCREW FLANGE HEAD NO.4 X .500 IN. LONG | |
| 51 | CS30581Z | SCREW HEX HEAD 2BA X .375 IN. LONG | |
| 170 | CS30581Z | SCREW HEX HEAD 2BA X .375 IN. LONG | |
| 138 | CS30581Z | SCREW HEX HEAD 2BA X .375 IN. LONG | |
| 63 | CS30581Z | SCREW HEX HEAD 2BA X .375 IN. LONG | |
| 171 | UA6707Z | SCREW MUSHROOM HEAD 2BA X 1.000 IN. LONG | |
| 134 | UA4701Z | SCREW PAN HEAD .250 UNF X .500 IN. LONG | |
| 14 | UA6801Z | SCREW PAN HEAD 2BA X .375 IN. LONG | |
| 115 | UA6802Z | SCREW PAN HEAD 2BA X .4375 IN. LONG | |
| 116 | UA6803Z | SCREW PAN HEAD 2BA X .500 IN. LONG | |
| 109 | UM20795Z | SCREW PAN HEAD M4 X 12MM LONG | |
| 110 | UM20795Z | SCREW PAN HEAD M4 X 12MM LONG | |
| 44 | UA8452E | SCREW RAISED CSK HEAD 2BA X .375 IN. LONG | |
| 36 | SPM1218 | SCREW SOCKET HEAD M4 X 40 MM LONG | |
| 50 | CS31342Z | SCREW WOOD CSK HEAD NO.4 X .375 IN. LONG | |
| 38 | CS31342Z | SCREW WOOD CSK HEAD NO.4 X .375 IN. LONG | |
| 18 | UA4554Z | SCREWS HINGE | |
| 146 | UB10626 | SEAL DOOR HINGE LOWER | |
| 145 | UB12377 | SEAL DOOR HINGE UPPER LH | |
| 145 | UB12378 | SEAL DOOR HINGE UPPER RH | |
| 24 | UB30146 | SEAL DOOR WAIST (22.937 IN.) | |
| 2 | UB30149 | SEAL DROP GLASS CHANNEL FRONT DOOR | |
| 172 | UB31535 | SEAL FRONT DOOR LH | |
| 172 | UB31534 | SEAL FRONT DOOR RH | |
| 31 | UB15074 | SEAL FRONT QUARTER LIGHT FRONT | |
| 29 | UB15439 | SEAL FRONT QUARTER LIGHT LOWER LH | |
| 29 | UB15438 | SEAL FRONT QUARTER LIGHT LOWER RH | |
| 30 | UB15073 | SEAL FRONT QUARTER LIGHT REAR | |
| 105 | UB15477 | SEAL PUSH BUTTON EXTERIOR DOOR HANDLE | |
| 155 | UW15198 | SEAL SPEAKER MOUNTING | |
| 174 | UW15199 | SEAL SPEAKER MOUNTING | |
| 48 | UB14461 | SEAL WAISTRAIL FINISHER TO GLASS FRONT DOOR | |
| 53 | UB17748 | SEAL WINDOW FRAME TO DOOR | |
| 173 | UB32963 | SEALING STRIP (INSEAL) | |
| 27 | UA1501Z | SETSCREW 2BA X .375 IN. LONG | |
| 124 | CS30583Z | SETSCREW 2BA X .625 IN. LONG | |
| 83 | UB18843 | SILL CONTROL ROD LEVER TO LATCH FRONT DOOR LH | |
| 83 | UB18844 | SILL CONTROL ROD LEVER TO LATCH FRONT DOOR RH | |
| 163 | UB19327 | SLIDE PIN FRONT DOOR ARMREST | |
| 150 | UW14155 | SOUNDPROOFING FRONT DOOR | |
| 177 | UW14155 | SOUNDPROOFING FRONT DOOR | |
| 140 | UB13681 | SPACER | |
| 120 | UB31792 | SPACER DOOR PRIVATE LOCK | |
| 158 | UD19342 | SPEAKER 4W 4 OHM (PHILIPS) | |
| 151 | UB18114 | SPEAKER GRILLE DOOR | |
| 75 | UB16264 | SPRING | |
| 164 | UB16890 | SPRING DOOR ARMREST | |
| 97 | UB17984 | SPRING PISTON SPRING LINK DOOR LOCKING | |
| 107 | UB33585 | SPRING PUSH BUTTON DOOR EXTERIOR RELEASE | |
| 108 | UB33581 | SPRING RETAINER PUSH BUTTON DOOR EXTERIOR RELEASE | |
| 111 | CK2976 | SPRING WASHER | |
| 42 | UB15385 | STEM DOOR MIRROR LH | |
| 42 | UB15494 | STEM DOOR MIRROR RH | |
| 35 | UB33551 | STIFFENER DOOR MIRROR MOUNTING LH | |
| 35 | UB33550 | STIFFENER DOOR MIRROR MOUNTING RH | |
| 128 | UD11793 | STUD ANCHOR ESCUTCHEON COVER PLATE | |
| 132 | UD11793 | STUD ANCHOR ESCUTCHEON COVER PLATE | |
| 104 | UM21021Z | STUD M5 X 19.5MM LONG | |
| 13 | UB15449 | TAPPING BLOCK REAR VIEW MIRROR FRONT DOOR | |
| 80 | UB10409 | TENSION SPRING DOOR LATCH | |
| 159 | UD6074 | TERMINAL MALE LUCAR .250 IN. (DOUBLE) | |
| 152 | UB2301 | TRIM CLIP | |
| 72 | UB19027 | WASHER | |
| 86 | UB13667 | WASHER FOAM | |
| 102 | UB13667 | WASHER FOAM | |
| 22 | UA1251Z | WASHER PLAIN .265 IN. I.D. | |
| 149 | UA1251Z | WASHER PLAIN .265 IN. I.D. | |
| 5 | UA1251Z | WASHER PLAIN .265 IN. I.D. | |
| 16 | UA1251 | WASHER PLAIN .265 IN. I.D. | |
| 79 | UA1252Z | WASHER PLAIN .328 IN. I.D. | |
| 28 | X4404Z | WASHER PLAIN 2BA | |
| 52 | X4404Z | WASHER PLAIN 2BA | |
| 125 | X4404Z | WASHER PLAIN 2BA | |
| 142 | X4404Z | WASHER PLAIN 2BA | |
| 61 | X4404Z | WASHER PLAIN 2BA | |
| 11 | X4404Z | WASHER PLAIN 2BA | |
| 65 | CS32044Z | WASHER PLAIN 2BA | |
| 68 | CS32044Z | WASHER PLAIN 2BA | |
| 117 | X8831 | WASHER PLAIN 2BA | |
| 157 | X4452Z | WASHER PLAIN 2BA | |
| 143 | X8801Z | WASHER PLAIN 7BA | |
| 17 | UB10525 | WASHER PLAIN SETSCREW | |
| 8 | UA2001Z | WASHER PLAIN THIN .265 IN. I.D. | |
| 91 | CS32056Z | WASHER SHAKEPROOF 2BA | |
| 4 | UA6102Z | WASHER THICK .255 IN. I.D. | |
| 19 | UA6102Z | WASHER THICK .255 IN. I.D. | |
