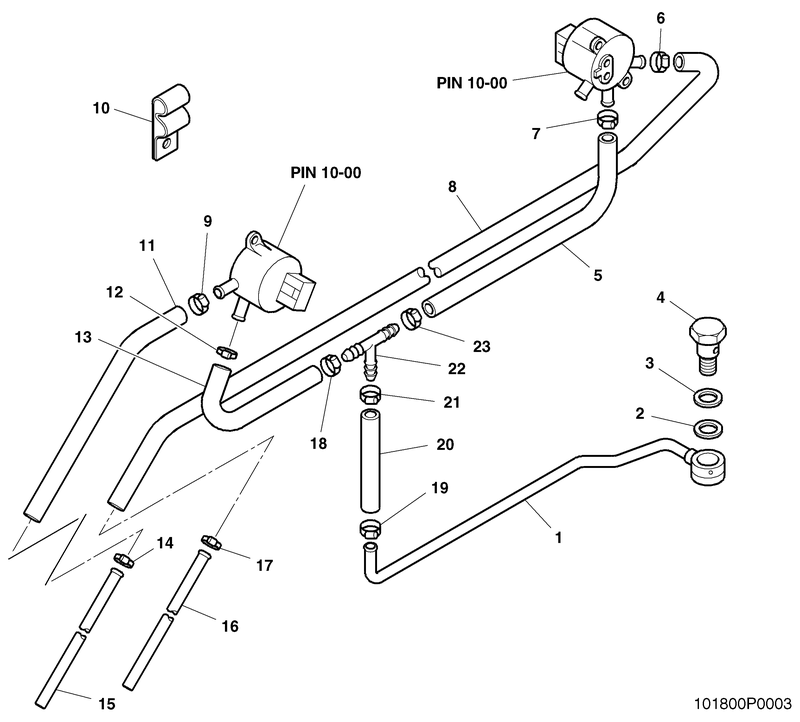

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| 16 | UT12273PA | ASSY PIPE AIR SIGNAL TRANSIENT BOOST | |
| 1 | UT11223 | ASSY PIPE TURBOCHARGER TO BOOST CONTROL SOLENOID | |
| 4 | UE45206 | BANJO BOLT M12 (+ .3125 UNF STUD) | |
| 23 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 7 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 17 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 21 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 9 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 18 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 19 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 12 | PF29228PA | CLIP HOSE 10.5/11.5 MM | |
| 6 | SPM2064 | HOSE CLIP 13.50/15.00MM | |
| 14 | SPM2064 | HOSE CLIP 13.50/15.00MM | |
| 13 | UV10836PA | HOSE SOLENOID VALVE TO T PIECE | |
| 11 | UV10835PA | HOSE SOLENOID VALVE TO WASTEGATE | |
| 5 | UV10562PA | HOSE TRANSIENT BOOST SOLENOID TO T PIECE | |
| 20 | UT12281PA | HOSE TURBO SIGNAL PIPE TO T PIECE | |
| 15 | UT11225 | PIPE BOOST SIGNAL WASTEGATE TO SOLENOID | |
| 10 | UT12080PA | PIPE CLIP | |
| 22 | UD75070 | T PIECE VACUUM HOSE | |
| 8 | UT12283PA | VACUUM HOSE WASTEGATE TO TRANSIENT BOOST SOLENOID | |
| 3 | XB1080R | WASHER SEALING OIL FEED | |
| 2 | XB1080R | WASHER SEALING OIL FEED | |
