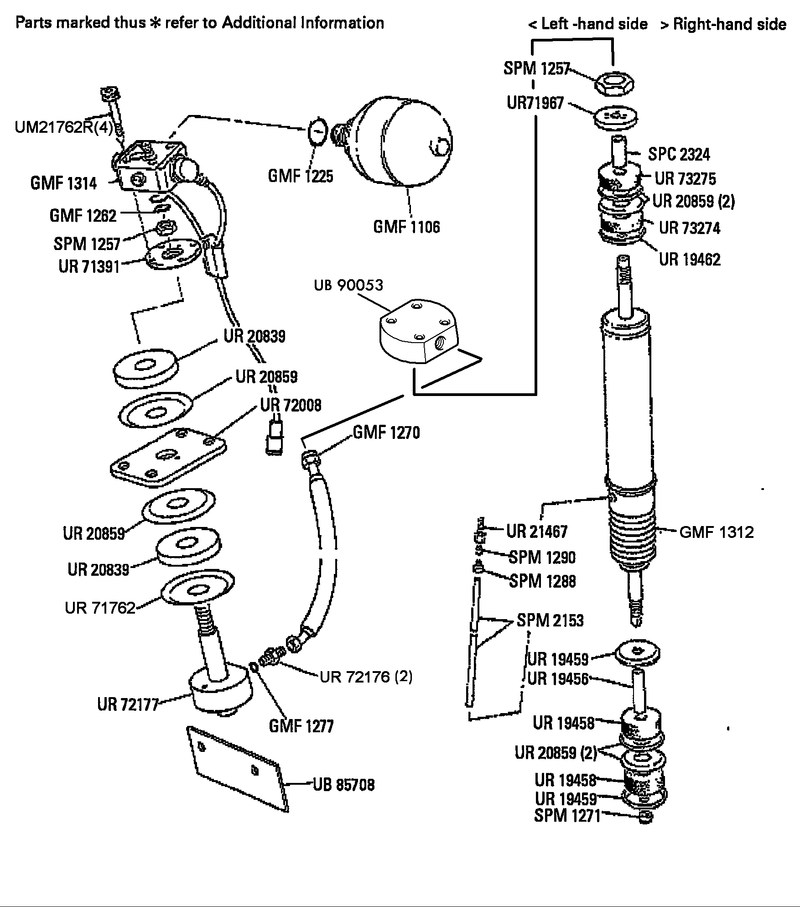

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| 20 | UR21467 | ADAPTOR REAR DAMPER DRAIN TUBE | |
| 28 | UR72176 | ADAPTOR REMOTE GAS SPRING HOSE | |
| 30 | UR72177 | ADAPTOR VALVE BLOCK REMOTE GAS SPRING | |
| 18 | GMF1270 | ASSY HOSE ACTIVE RIDE CONTROL UNIT | |
| 17 | UR72008 | ASSY MOUNTING PLATE GAS SPRING REAR DAMPER | |
| 35 | UB85708 | BLANK PLATE REAR BUMPER MOUNTING | |
| 4 | SPC2324 | BUSH | |
| 3 | UM21762R | CAPSCREW SOCKET HEAD M6 X 60MM LONG | |
| 29 | UR19456 | DISTANCE TUBE REAR SUSPENSION DAMPER | |
| 26 | SPM2153 | DRAIN TUBE REAR STRUT | |
| 10 | GMF1106 | GAS SPHERE REAR SUSPENSION | |
| 18 | UT13200PA | HYDRAULIC HOSE REAR DAMPER TO REMOTE GAS SPRING | |
| 11 | UR73274 | MOUNT DAMPER UPPER REAR SUSPENSION | |
| 6 | UR73275 | MOUNT GAS SPRING REAR SUSPENSION | |
| 23 | UR20839 | MOUNT GAS SPRING REAR SUSPENSION | |
| 15 | UR20839 | MOUNT GAS SPRING REAR SUSPENSION | |
| 31 | UR19458 | MOUNT REAR SUSPENSION DAMPER LOWER | |
| 34 | UR19458 | MOUNT REAR SUSPENSION DAMPER LOWER | |
| 12 | SPM1257 | NUT M14 X 1.5 | |
| 1 | SPM1257 | NUT M14 X 1.5 | |
| 37 | SPM1271 | NUT NYLOC M12 X 1.25 | |
| 32 | GMF1277 | O RING CONNECTOR | |
| 5 | GMF1225 | O RING DAMPER REAR ADAPTOR | |
| 9 | GMF1262 | O RING DAMPER REAR SOLENOID | |
| 22 | SPM1290 | OLIVE DRAIN TUBE REAR STRUT | |
| 8 | UR20859 | RETAINING WASHER REAR DAMPER MOUNTING | |
| 16 | UR20859 | RETAINING WASHER REAR DAMPER MOUNTING | |
| 33 | UR20859 | RETAINING WASHER REAR DAMPER MOUNTING | |
| 21 | UR20859 | RETAINING WASHER REAR DAMPER MOUNTING | |
| 25 | UR71762 | RETAINING WASHER REAR DAMPER MOUNTING | |
| 19 | GMF1312 | STRUT SUSPENSION REAR | |
| 2 | UR71967 | SUPPORT DISC ADAPTOR REAR DAMPER | |
| 14 | UR71391 | SUPPORT DISC DAMPER VALVE REAR | |
| 24 | SPM1288 | TUBE NUT DRAIN REAR STRUT | |
| 7 | GMF1314 | VALVE BLOCK REAR DAMPER | |
| 38 | UB90053 | VALVE BLOCK REAR SUSPENSION STRUT (REMOTE GAS SPRING) | |
| 27 | UR19459 | WASHER REAR SUSPENSION DAMPER LOWER | |
| 36 | UR19459 | WASHER REAR SUSPENSION DAMPER LOWER | |
| 13 | UR19462 | WASHER REAR SUSPENSION DAMPER UPPER | |
