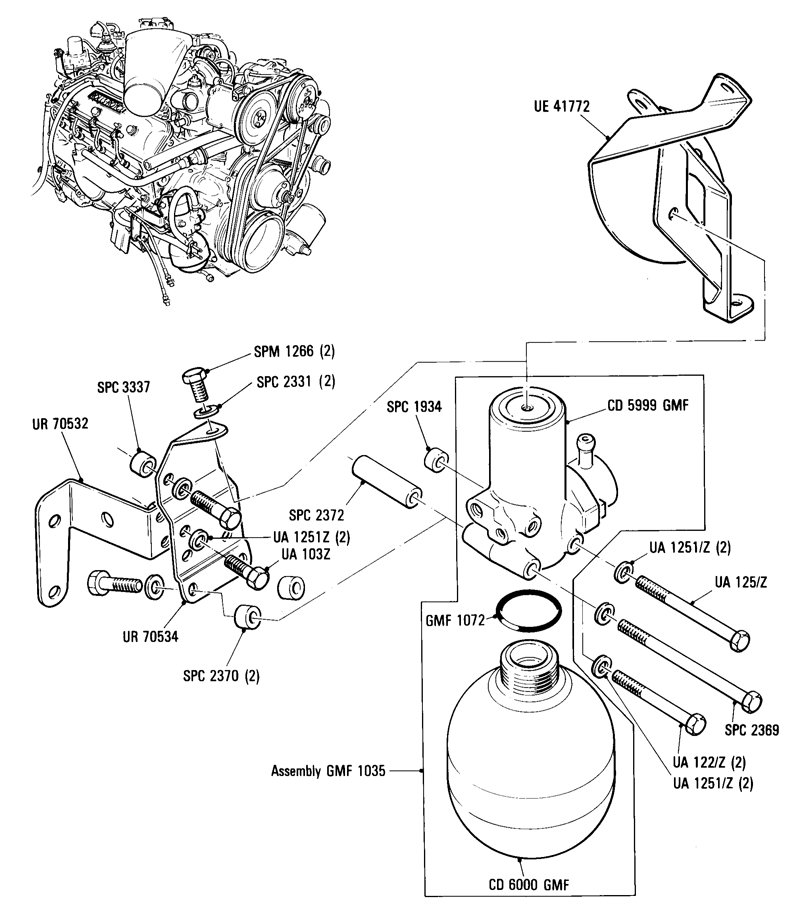

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| GMF1035 | ASSY ACCUMULATOR | ||
| UE41772 | ASSY HEATSHIELD HYDRAULIC ACCUMULATOR | ||
| UR70532 | ASSY MOUNTING BRACKET HYDRAULIC ACCUMULATOR FRONT | ||
| CD5999GMF | ASSY VALVE ACCUMULATOR | ||
| UA103Z | BOLT .250 UNF X .625 IN. LONG | ||
| SPC2369 | BOLT HEX HD .250 UNF X 4.375 IN. LONG | ||
| UA122Z | BOLT.250 UNF X 3.000 IN. LONG | ||
| UA125Z | BOLT.250 UNF X 3.750 IN. LONG | ||
| SPC3337 | DISTANCE PIECE | ||
| SPC2372 | DISTANCE PIECE | ||
| SPC2370 | DISTANCE PIECE | ||
| UR70534 | MOUNTING BRACKET HYDRAULIC ACCUMULATOR FRONT | ||
| GMF1072 | O RING | ||
| SPM1266 | SCREW HEXAGON HEAD M7 X 16MM LONG | ||
| SPC1934 | SPACER PETROL PIPE | ||
| CD6000GMF | SPHERE BRAKE ACCUMULATOR | ||
| SPC2331 | WASHER | ||
| UA1251Z | WASHER PLAIN .265 IN. I.D. | ||
| UA1251Z | WASHER PLAIN .265 IN. I.D. | ||
| UA1251Z | WASHER PLAIN .265 IN. I.D. | ||
