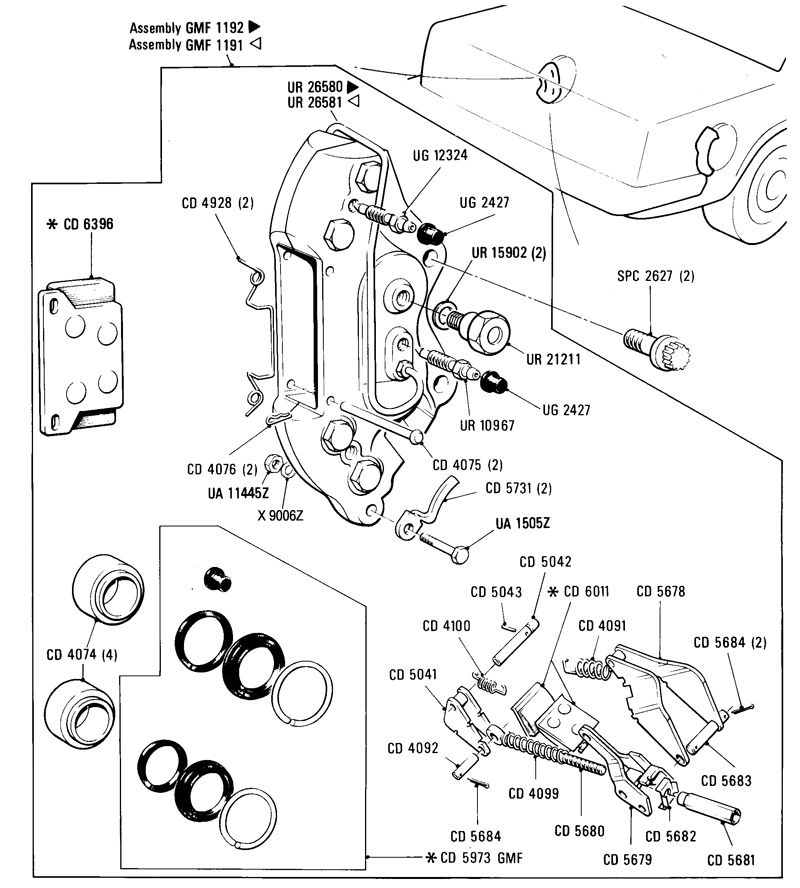

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| UR21211 | ADAPTOR BRAKE PIPE | ||
| GMF1191 | ASSY BRAKE CALIPER REAR LH | ||
| GMF1192 | ASSY BRAKE CALIPER REAR RH | ||
| UR26581 | ASSY BRIDGE PIPE REAR BRAKE CALIPER LH | ||
| UR26580 | ASSY BRIDGE PIPE REAR BRAKE CALIPER RH | ||
| UR10967 | BLEED NIPPLE | ||
| UG12324 | BLEED SCREW BRAKE CALIPER (LONG REACH) | ||
| SPC2627 | BOLT EXTERNAL SPLINED HEAD .500 UNF X 1.350 IN. LONG | ||
| CD5041 | CLAMPING LEVER | ||
| CD5682 | CLIP | ||
| CD4076 | CLIP | ||
| UG2427 | DUST CAP BLEED SCREW | ||
| UG2427 | DUST CAP BLEED SCREW | ||
| UR15902 | JOINT WASHER REAR BRAKE CALIPER | ||
| CD6011 | KIT HANDBRAKE PAD | ||
| CD5679 | LEVER | ||
| CD5678 | LEVER CLAMPING INNER | ||
| CD5681 | NUT | ||
| UA11445Z | NUT PLAIN LOCK 2BA | ||
| CD6396 | PAD KIT REAR | ||
| CD5043 | PIN | ||
| CD4075 | PIN PAD RETAINING | ||
| CD4092 | PIN PIVOT TIE ROD | ||
| CD4074 | PISTON | ||
| CD5042 | PIVOT PIN | ||
| CD5683 | PIVOT PIN OPERATING LEVER | ||
| CD5680 | ROD TIE CALIPER | ||
| CD5973GMF | SERVICE KIT REAR CAPLIPER | ||
| UA1505Z | SETSCREW 2BA X 1.250 IN. LONG | ||
| CD5684 | SPLIT PIN | ||
| CD5684 | SPLIT PIN | ||
| CD4928 | SPRING | ||
| CD4099 | SPRING LEVER RETURN | ||
| CD4100 | SPRING PAD RETENTION | ||
| CD4091 | SPRING RETURN | ||
| CD5731 | STRAP | ||
| X9006Z | WASHER SPRING 2BA | ||
