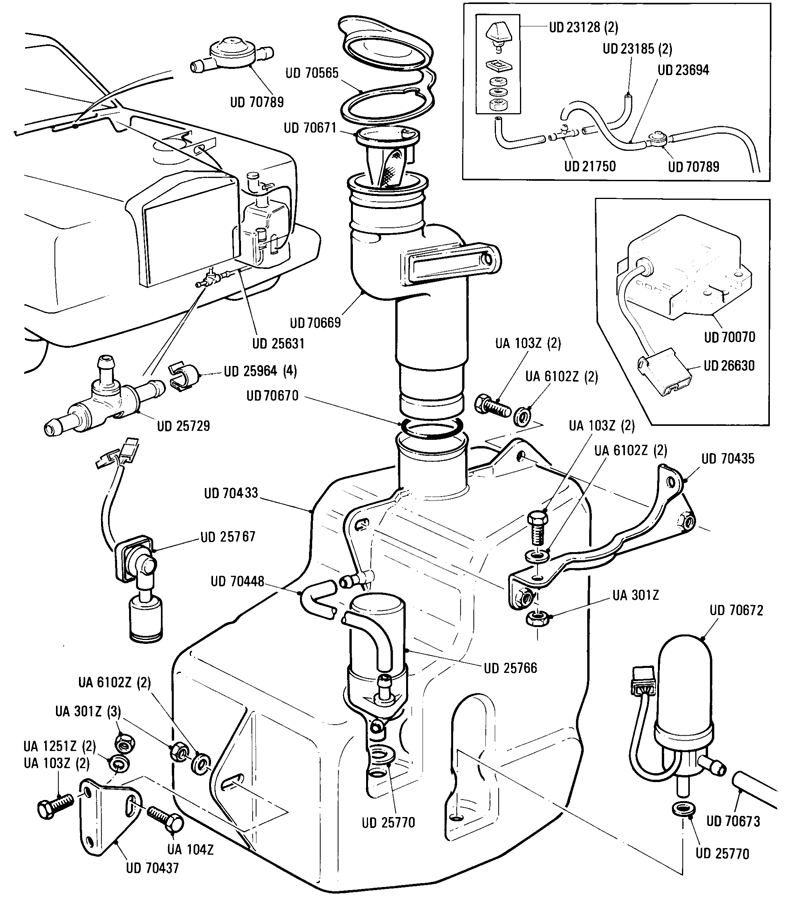

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| UD25767 | ASSY LOW LEVEL INDICATOR RESERVOIR HEADLAMP POWER WASH | ||
| UD70561 | ASSY RESERVOIR WINDSCREEN & HEADLAMP WASHERS | ||
| UA103Z | BOLT .250 UNF X .625 IN. LONG | ||
| UA103Z | BOLT .250 UNF X .625 IN. LONG | ||
| UA103Z | BOLT .250 UNF X .625 IN. LONG | ||
| UA104Z | BOLT .250 UNF X .750 IN. LONG | ||
| UD70070 | CONTROL BOX WINDSCREEN WASHERS & INTERMITTENT WIPE | ||
| UD25964 | EDGE CLIP HOSE RETENTION | ||
| UD70565 | FILLER CAP RESERVOIR WINDSCREEN & HEADLAMP WASHERS | ||
| UD70669 | FILLER NECK RESERVOIR WINDSCREEN & HEADLAMP WASHERS | ||
| UD70671 | FILTER FILLER NECK WASHER RESERVOIR | ||
| UD25770 | GROMMET RESERVOIR HEADLAMP POWER WASH | ||
| UD25770 | GROMMET RESERVOIR HEADLAMP POWER WASH | ||
| UD23128 | JET WINDSCREEN WASHER | ||
| UD70437 | MOUNTING BRACKET WASHER RESERVOIR LOWER | ||
| UD70435 | MOUNTING BRACKET WASHER RESERVOIR UPPER | ||
| UA301Z | NUT PLAIN .250 UNF | ||
| UA301Z | NUT PLAIN .250 UNF | ||
| UD26630 | PLUG 12 WAY MINATURE TTS | ||
| UD25766 | PUMP HEADLAMP POWER WASH | ||
| UD70672 | PUMP WINDSCREEN WASHERS | ||
| UD70433 | RESERVOIR WINDSCREEN & HEADLAMP WASHERS | ||
| UD70670 | SEAL FILLER NECK WASHER RESERVOIR | ||
| UD21750 | T PIECE HEADLAMP WASHERS | ||
| UD25729 | T VALVE HEADLAMP POWER WASH | ||
| UD25631 | TUBE HEADLAMP POWER WASH PUMP TO 3 WAY | ||
| UD70448 | TUBE HEADLAMP WASHER PUMP VENT | ||
| UD70673 | TUBE WINDSCREEN WASHER PUMP (2.95M) | ||
| UD23185 | TUBE WINDSCREEN WASHERS (4.500 IN.) | ||
| UD23694 | TUBE WINDSCREEN WASHERS (8.000 IN.) | ||
| UD70789 | VALVE NON RETURN WINDSCREEN WASHERS | ||
| UD70789 | VALVE NON RETURN WINDSCREEN WASHERS | ||
| UA1251Z | WASHER PLAIN .265 IN. I.D. | ||
| UA6102Z | WASHER THICK .255 IN. I.D. | ||
| UA6102Z | WASHER THICK .255 IN. I.D. | ||
| UA6102Z | WASHER THICK .255 IN. I.D. | ||
