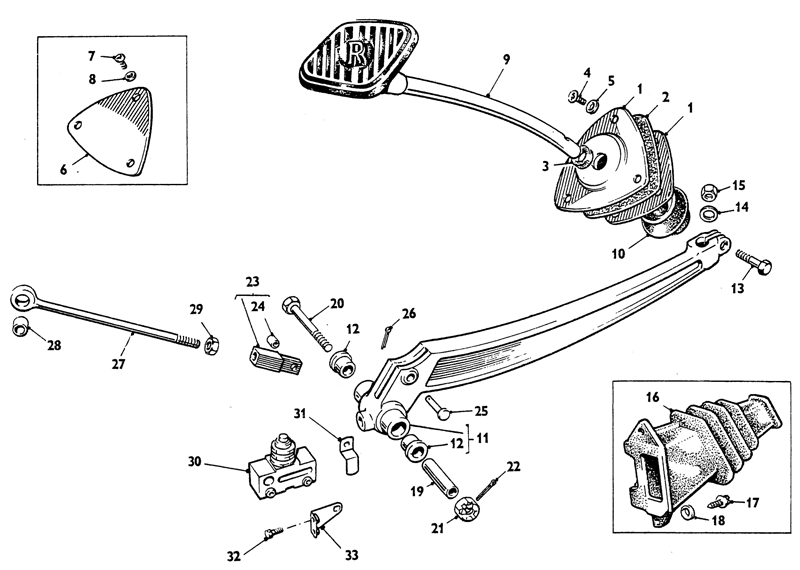

Identify your part from either the component diagram or parts list below, select the quantity you require and click to add to your quotation request. Repeat this process for all the components you need.
Once you have completed your selection, go to the quotations link at the top of the page to view your basket.
| Part number | Part name | Notes | |
|---|---|---|---|
| 31 | UR19483 | ACTUATOR PLATE STOP LAMP SWITCH BRAKE ACTUATION MECHANISM | |
| 11 | UR19485 | ASSY BRAKE LEVER | |
| 9 | UR13873 | ASSY BRAKE PEDAL BENTLEY | |
| 9 | UR13872 | ASSY BRAKE PEDAL ROLLS-ROYCE | |
| 27 | UR17185 | ASSY ROD BRAKE PEDAL TO ACTUATION MECHANISM | |
| 33 | UR19487 | ASSY SUPPORT BRACKET STOP LAMP SWITCH BRAKE ACTUATION MECHANISM | |
| 6 | UB20605 | BLANKING PLATE BRAKE PEDAL TOEBOARD | |
| 20 | UE5216 | BOLT .250 UNF X 3.100 IN. LONG | |
| 13 | UA156Z | BOLT .3125 UNF X 1.125 IN. LONG | |
| 11 | UR13493 | BOSS BRAKE PEDAL LEVER | |
| 24 | UR8290 | BUSH | |
| 28 | UR12869 | BUSH BRAKE PEDAL ACTUATION ROD | |
| 12 | UR3164 | BUSH BRAKE PEDAL LEVER | |
| 25 | X6512Z | CLEVIS PIN .250 IN. DIAMETER X .990 IN. LONG | |
| 23 | UR17158 | CONNECTOR BRAKE PEDAL ACTUATION ROD | |
| 19 | UR12618 | DISTANCE TUBE BRAKE PEDAL PIVOT | |
| 17 | UA8812Z | DRILLSCREW DURADYNE NO.8 X .500 IN. LONG | |
| 3 | UR1009 | FELT SEAL BRAKE PEDAL | |
| 1 | UB20619 | HOUSING BRAKE PEDAL TOEBOARD | |
| 2 | UR11904 | JOINT BRAKE PEDAL HOUSING | |
| 11 | UR19484 | LEVER BRAKE PEDAL | |
| 30 | UR19476 | MICROSWITCH STOP LAMP | |
| 21 | UA401Z | NUT CASTELLATED .250 UNF | |
| 29 | UA301Z | NUT PLAIN .250 UNF | |
| 15 | UA302Z | NUT PLAIN .3125 UNF | |
| 9 | UR5140 | RUBBER PAD BRAKE PEDAL BENTLEY | |
| 9 | UR5141 | RUBBER PAD BRAKE PEDAL ROLLS-ROYCE | |
| 7 | UA6803Z | SCREW PAN HEAD 2BA X .500 IN. LONG | |
| 4 | UA6803Z | SCREW PAN HEAD 2BA X .500 IN. LONG | |
| 16 | UR21731 | SEAL BRAKE PEDAL LEVER | |
| 10 | UR19857 | SEAL BRAKE PEDAL STEM | |
| 32 | UA1501Z | SETSCREW 2BA X .375 IN. LONG | |
| 22 | UA10011Z | SPLIT PIN .062 IN. X .500 IN. LONG | |
| 26 | UA10020Z | SPLIT PIN .093 IN. X .625 IN. LONG | |
| 5 | UR11057 | WASHER | |
| 14 | UA1252Z | WASHER PLAIN .328 IN. I.D. | |
| 8 | X4404Z | WASHER PLAIN 2BA | |
| 18 | UA6101Z | WASHER THICK .185 IN. I.D. | |
